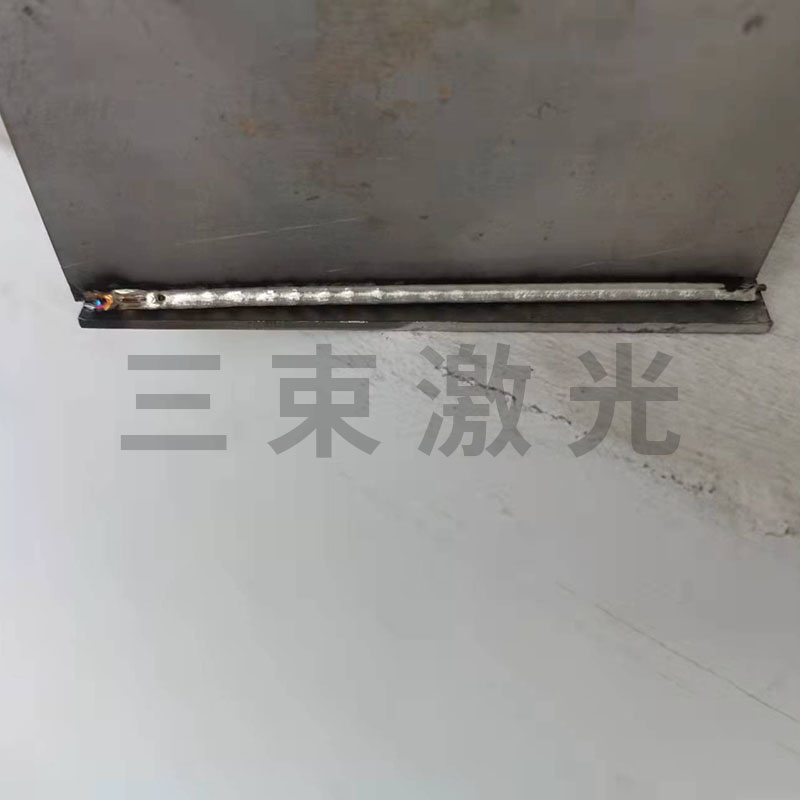

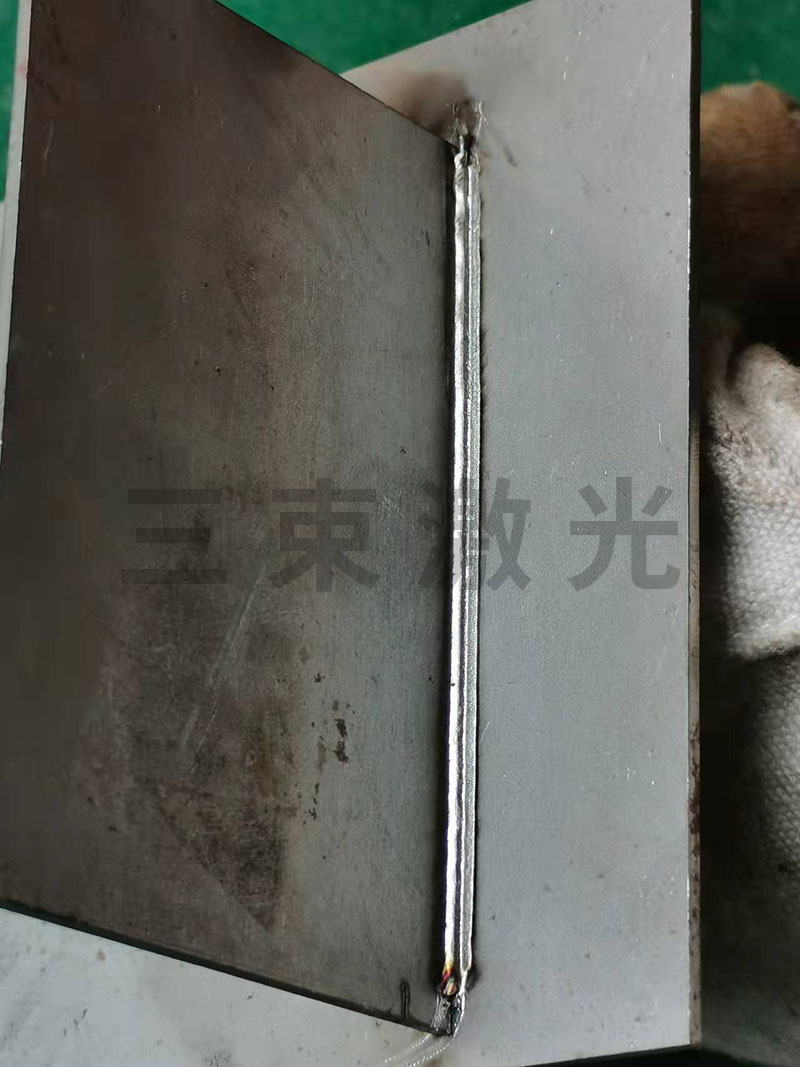

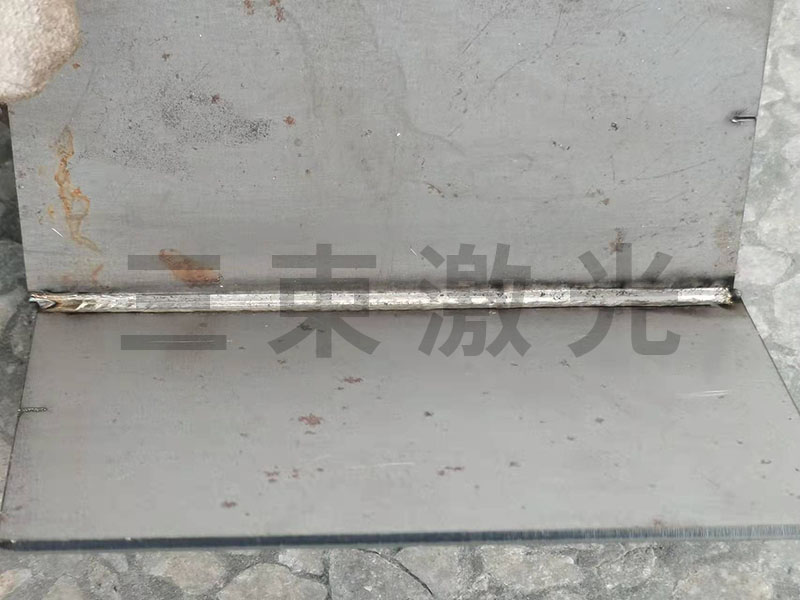

手持激光金屬焊接機是采用風冷光纖激光器，配置自主研發的手持焊接頭，具有操作簡單，焊縫美觀，焊接速度快，在薄不銹鋼板，鐵板，鍍鋅板等金屬材料方面焊接，可取代傳統氬弧焊、電焊等工藝。激光焊接屬于非接觸式焊接，作業過程不需要加壓，其工作原理是將激光束直接照射于材料表面，通過激光與材料的相互作用，使材料內部熔化，繼而冷卻結晶形成焊縫。
客戶服務熱線
傳真 ：021-57891301
手機
：15901891893 萬經理
15601911401 萬經理
|
型號 |
SWF-1000 |
SWF-1500 |
SWF-2000 |
SWF-2500 |
|
激光功率 |
1000W |
1500W |
2000W |
2500W |
|
工作模式 |
連續或脈沖 |
連續或脈沖 |
連續或脈沖 |
連續或脈沖 |
|
激光波長 |
1064nm |
1064nm |
1064nm |
1064nm |
|
光束質量 |
M2<1.1 |
M2<1.15 |
M2<1.2 |
M2<1.2 |
|
輸出功率穩定度 |
±2% |
±2% |
±2% |
±2% |
|
電力要求 |
AC220V±10%50/60Hz |
|||
|
冷卻系統 |
水冷 |
|||
|
纖維長度 |
5-10m(可定制) |
|||
|
工作環境溫度范圍 |
15℃-45℃ |
|||
|
工作環境濕度范圍 |
5%-75% |
|||
|
焊接厚度范圍 |
MAX1MM |
MAX1.5MM |
MAX2MM |
MAX3MM |
|
適用材料 |
金屬等 |
|||
|
焊接要求 |
<0.2mm |
|||
|
焊接速度 |
0~120mm/s |
|
model |
SWF-1000 |
SWF-1500 |
SWF-2000 |
SWF-2500 |
|
laser power |
1000W |
1500W |
2000W |
2500W |
|
Working mode |
Continuous or pulse |
Continuous or pulse |
Continuous or pulse |
Continuous or pulse |
|
Laser wavelength |
1064nm |
1064nm |
1064nm |
1064nm |
|
Beam quality |
M2<1.1 |
M2<1.15 |
M2<1.2 |
M2<1.2 |
|
Output power stability |
±2% |
±2% |
±2% |
±2% |
|
Power requirements |
AC220V±10%50/60Hz |
|||
|
Cooling system |
water-cooling |
|||
|
Fiber length |
5-10m(Customizable) |
|||
|
Operating ambient temperature range |
15℃-45℃ |
|||
|
Working environment humidity range |
5%-75% |
|||
|
Welding thickness range |
MAX1MM |
MAX1.5MM |
MAX2MM |
MAX3MM |
|
Applicable materials |
Metal, etc |
|||
|
Welding requirements |
<0.2mm |
|||
|
welding speed |
0~120mm/s |
